各轴行程：X/Y/Z 1250/2350/700 mm
油箱：长/宽/高 1510/2570/790 mm
适用于：汽车内饰/模具设计；机身、油箱及防震；�；ば吕砟�

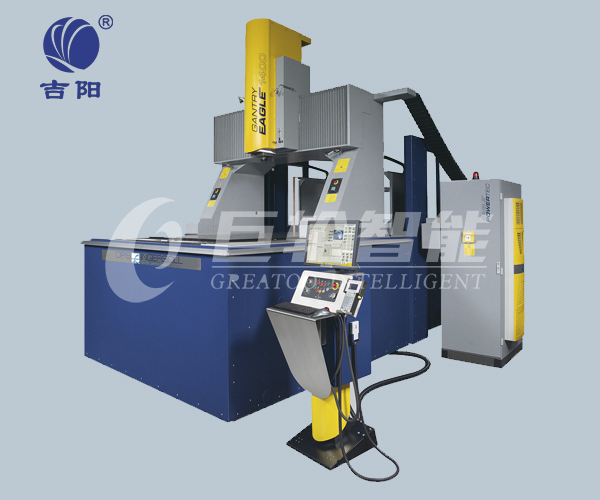

大型龙门式细密数控电火花机床；质料去除率更高、电极消耗显著降低，EAGLE POWER TEC 电源实现自顺应脉冲形式，每个脉冲含有适用该放电所在的放 电条件的理想能量 。
|
机床/Machine tool |
|
|
机床重量/Weight of machine tool |
19000kg |
|
电源重量/Power supply weight |
640kg |
|
电源功率/Power supply |
23KVA |
|
继电/Relay |
40A |
|
电压/频率/Voltage / frequency |
400/50 |
|
事情槽/Working groove |
|
|
类型/Type |
整体升降/Integral lifting |
|
事情槽内部尺寸（长x宽x高）/Internal size of working groove (long x width x height) |
1510x2570x790mm |
|
最大液面高度可编程/自动/Maximum height of the liquid level can be programmed / automatic |
740mm |
|
事情头部/Working head |
|
|
最大工件托盘重量/Maximum weight of workpiece |
300kg |
|
事情台到装置版距离最小/最大/Working table to install version distance min / Max |
200/900(500/1200)mm |
|
C轴/C axis |
|
|
转速（可调理）/Speed (adjustable) |
1-20min |
|
最小指令值/Minimum instruction |
0,001° |
|
最大手动电极交流重量/Maximum manual electrode exchange weight |
50kg |
|
最大自动电极交流重量/Maximum automatic electrode exchange weight |
25kg |
|
最大运动惯量/Maximum motion inertia |
0,4kg/㎡ |
|
扭矩/Torque |
25Nm |
|
事情台/workbench |
|
|
事情台尺寸（长x宽）able size (length x width) |
1340x2410mm |
|
最大工件重量/Maximum weight of workpiece |
10000kg |
|
行程/Trip |
|
|
X/Y/Z在加工槽内的行程/X/Y/Z stroke in the processing slot |
1250x2350x700mm |
|
Y（电极交流和装卸时行程）/Y (electrode exchange and loading and u |
2700mm |
|
控制系统/Control system |
|
|
PC-NC对话/PC-NC dialogue |
2x32bit |
|
驱动类型/Drive type |
数字交流伺服电机/Digital AC servo motor |
|
XYZ轴移动速率/XYZ axis movement speed |
Max5000mm/min |
|
最大高速抬刀速率/Maximum high speed lift |
18000mm/min |
|
事情液箱/Working liquid box |
|
|
滤芯类型/Type of filter element |
筒（内置）/Cylinder (built in) |
|
过滤面积/Filtration area |
32㎡ |
|
事情液箱总容量/Total tank capacity |
6000ltr |
|
电极交流系统/Electrode exchange system |
|
|
类型/Type |
旋转盘/Rotating disk |
|
电极库（可� 。�/Electrode Bank (optional) |
15（30/48） |
|
团结电极库作为选配/Combined electrode bank as an option |
2/18、4/18 |
|
允许电极重量/Allowable electrode weight |
|
|
-简单电极/Single electrode |
25kg |
|
-总体重量/Total weight |
150(200)kg |
|
电源/Power Supply |
|
|
类型/Type |
脉冲形状自顺应控制/Adaptive pulse shape control |
|
最大事情电流(选配)/Maximum operating current（optional) |
60（110）A |
|
特殊特点/Additional features |
|
|
自动中央润滑/Automatic central lubrication |
标准设置/Standard configuration |
|
冷却系统、功率/Cooling system, power |
12KW |
|
CO2灭火装置（D1D14497）灭火剂容量/Capacity of CO2 fire extinguishing equipment (D1D14497) |
30kg |
